Without it, nothing else works. The Core module is the brain of every Phasmida enclosure — it powers the sensors, runs the camera, talks to Smart Cloud over WiFi, and shows live readings on its own touchscreen. One Core per terrarium. Everything else on this page plugs into it.
REQUIRED · ONE PER TERRARIUM
PHA-BUN-BASIC-001
Phasmida Basic Bundle
Not availableWaitlist only
The Basic Bundle pairs a dual-core ESP32-S3 controller (240 MHz, 16 MB Flash, 8 MB PSRAM) with a rechargeable 500 mAh battery base and an ENV III sensor stack (SHT30 + QMP6988). You get stable environmental readings, responsive local UI control, and continuous cloud reporting suitable for both daily husbandry and long-term trend analysis. The module supports low-power operation, threshold-based notifications, and rapid onboarding through device pairing and guided Wi-Fi setup.
The Pro Bundle combines the same high-performance controller platform (dual-core ESP32-S3, 16 MB Flash, 8 MB PSRAM) with an ENV Pro sensor based on BME688-class measurements for temperature, humidity, pressure, and gas resistance trends. This enables deeper air-quality insight, including VOC-related index behavior in bioactive or densely planted systems. It is ideal when you need more than raw climate values: you get richer diagnostics, cleaner alert logic, and better decision support for ventilation, misting, and enclosure stability over time.
Add sensors, camera modules, and support hardware around your core controller. Build a simple starter setup or a more advanced enclosure with targeted components.
PHA-NODE-VISION-001
Phasmida Vision Module
Not availableWaitlist only
The Vision Module is built around a 3 MP camera path with 120-degree fisheye coverage and an onboard...
Each paired gadget gets its own card. Every card shows live data, a daily trend graph, and your configured alert range. Multiple devices live side-by-side on one screen.
Temperature — live and trended
Current reading, 24-hour min/max and a trend graph per device. Track stable climate data with Phasmida ENV III and ENV Pro sensors.
Humidity — always in range
Real-time relative humidity with daily trend. Set your target range per terrarium and get an email the moment it drifts.
Live camera stream
MJPEG stream from your enclosure, visible only to you. Check on a molt, a hatching, or a feeding — from anywhere with a browser.

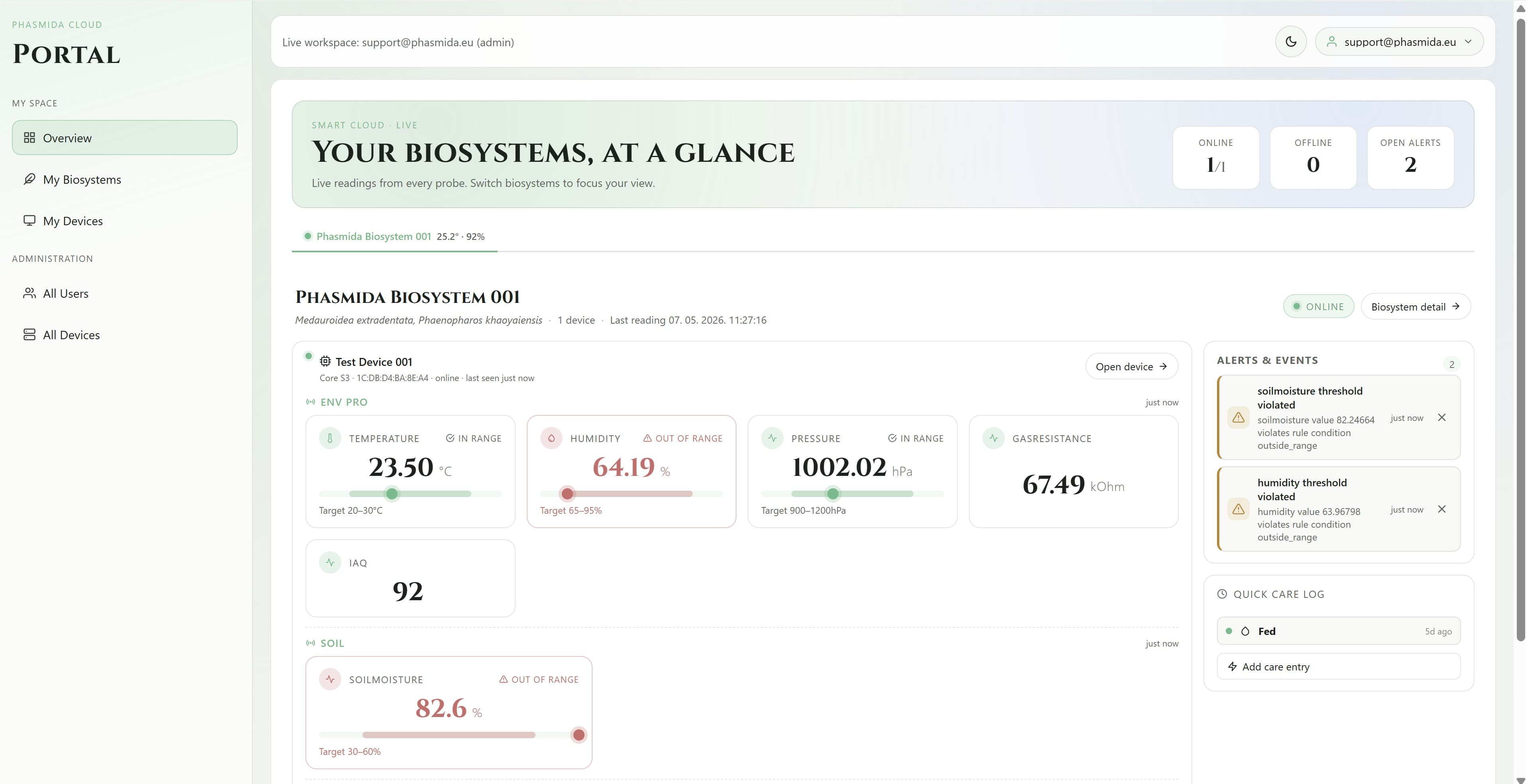

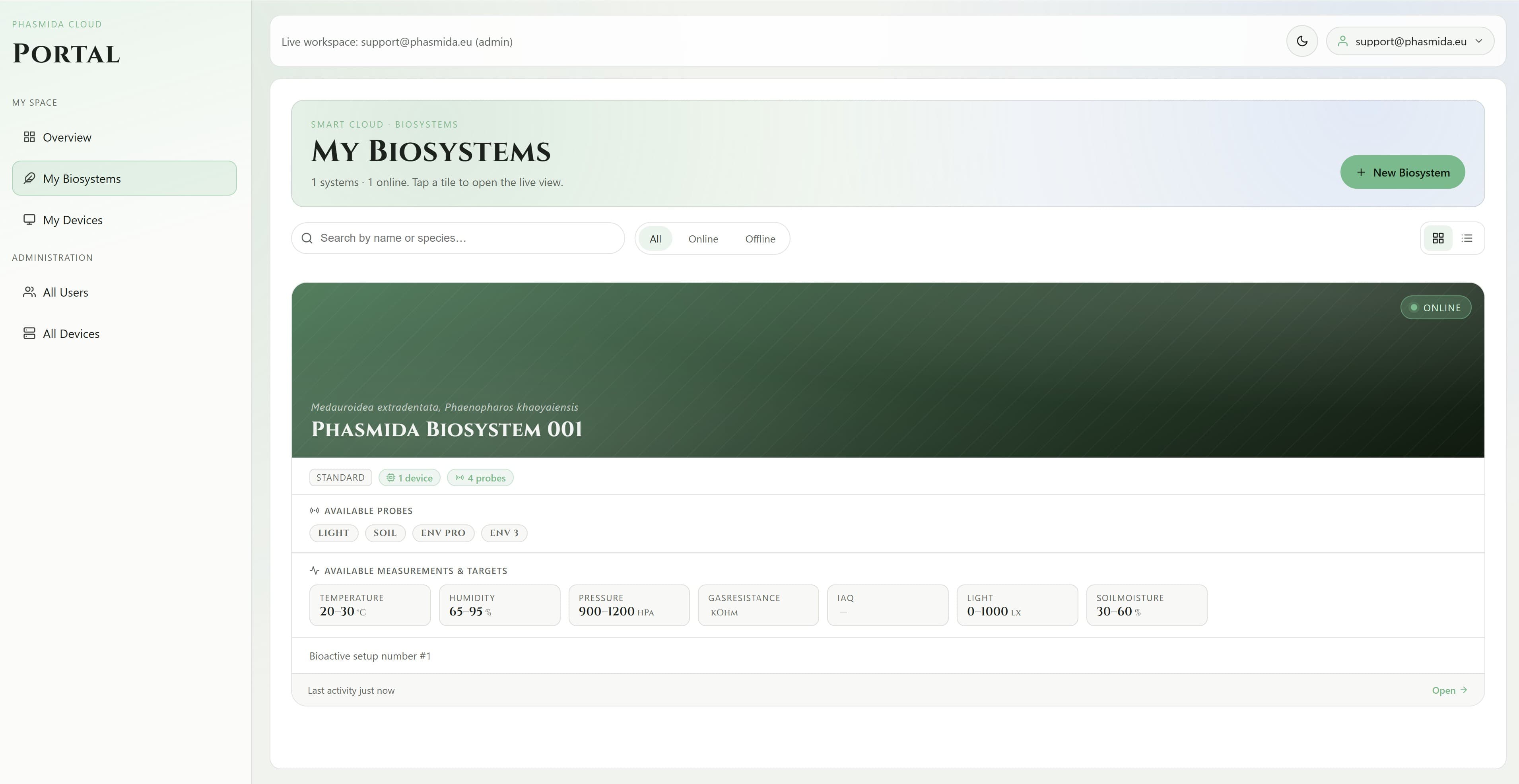

Multi-device overview
One page for every paired module. Status at a glance: online, last reading, alerts active. Collections, not just single terrariums.
THE DASHBOARD
Data in front of you the moment you need it.

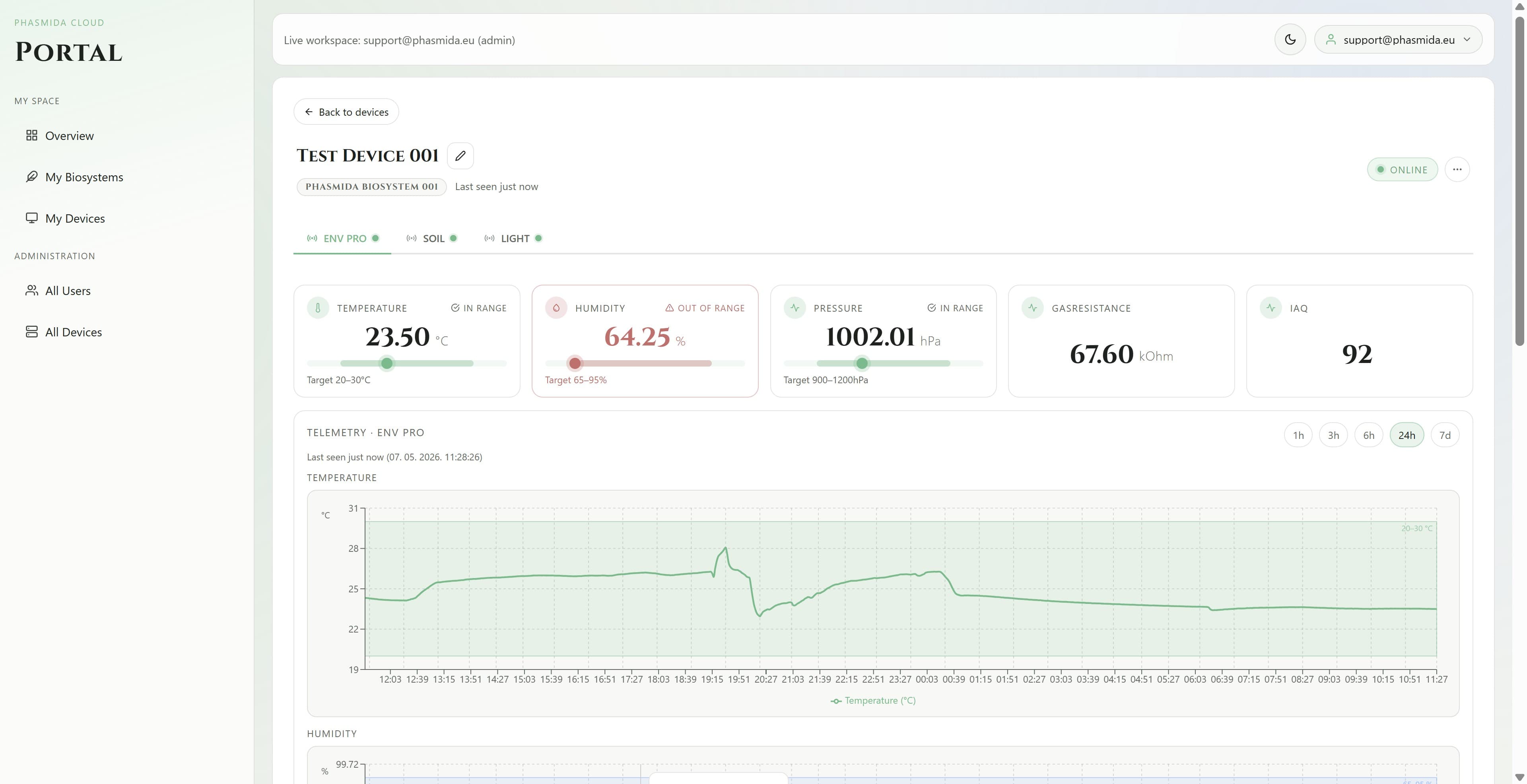

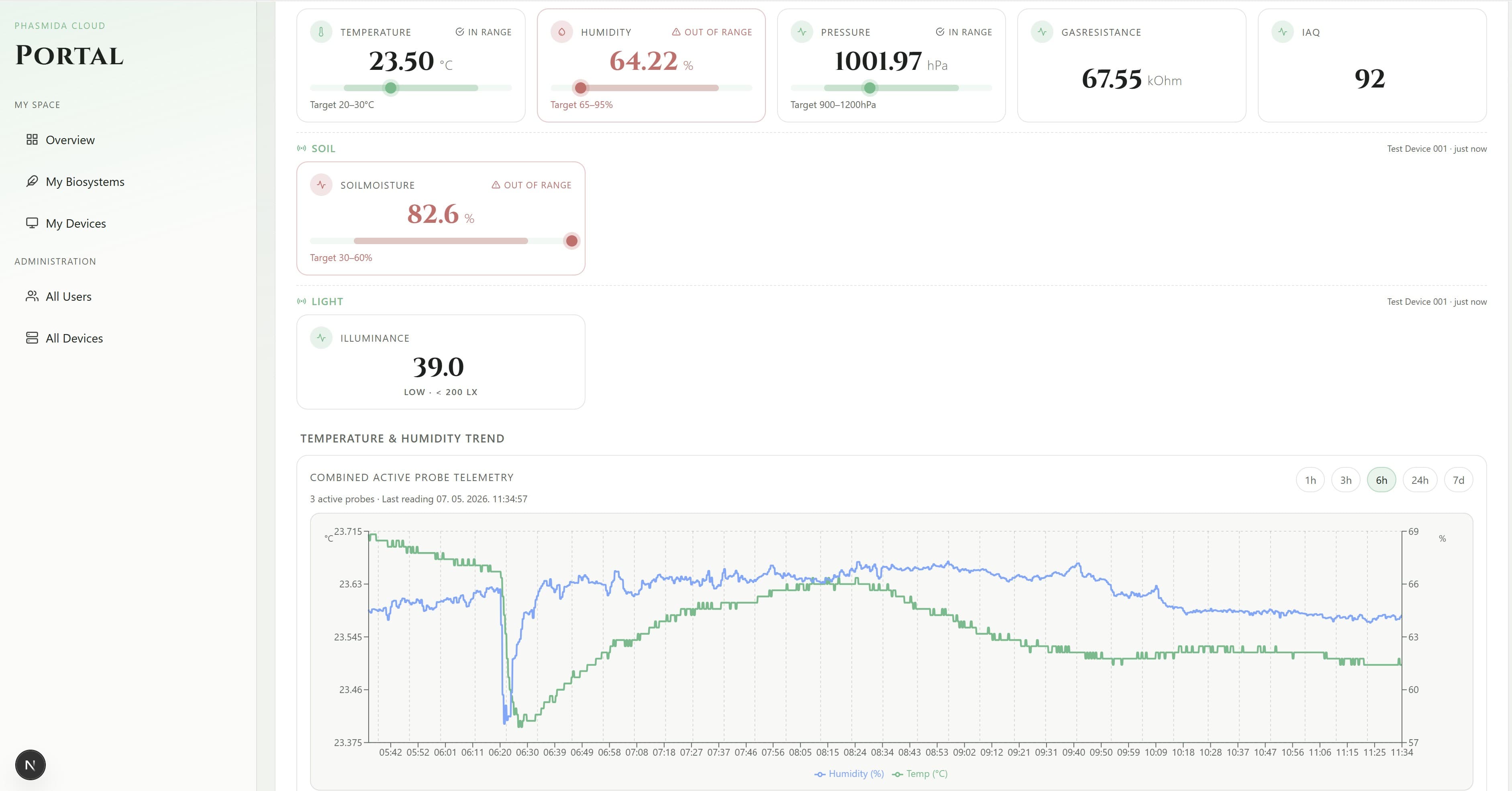

Designed for keepers who maintain more than one enclosure. The overview page lists all your devices with their current status — online, reading, alert state. Drill into any device for the full 24-hour trend and alert configuration.
Free tier keeps 7 days of history. Keeper plan extends that to 30 days — long enough to track seasonal cycles and see how a molt correlates with the humidity curve that preceded it.
My enclosures — 5 online
Temperature
26.4°
min 24.1 · max 27.8 today
Humidity
78%
min 61% · max 83% today
Pressure / Air quality
1008 hPa
ENV III / ENV Pro · stable
Device uptime
14 d
Last restart 13 Apr
Active alerts
1
Temp above range · Terrarium 3
Last reading
38 s ago
All devices reporting
Medauroidea colony — main Online
Isopod bioactive — shelf B Online
Springtail culture — backup Online
Armadillidium colony — shelf A Online
Nymph rearing box — batch 3 Online
HOW IT WORKS
Plug in. Pair. Live in 60 seconds.
No soldering. No configuration files. Every gadget ships pre-flashed — you just connect it to your WiFi and it appears in your dashboard automatically.
1
Receive your Bundle
Every kit ships with a pre-flashed Phasmida Core Module and the sensors you ordered. A unique pairing code is printed on the box insert.
2
Claim your Core Module
Log into your account, click "Add Device" and enter the pairing code. The Core Module — and any sensors plugged into it — are claimed to your account instantly.
3
Connect to your WiFi
On first boot the module opens a setup hotspot. Connect your phone, enter your home WiFi credentials — done.
4
Live in 60 seconds
The module appears in your dashboard with the first reading from every connected sensor. From this point it reports every 60 seconds over MQTT/TLS.
Active alerts — Medauroidea colony
⚠️
Temperature above threshold
29.1 °C · limit 28.0 °C · since 14:22
✅
Humidity within range
76% · range 60–85% · OK
✅
Device online
Last heartbeat 38 s ago

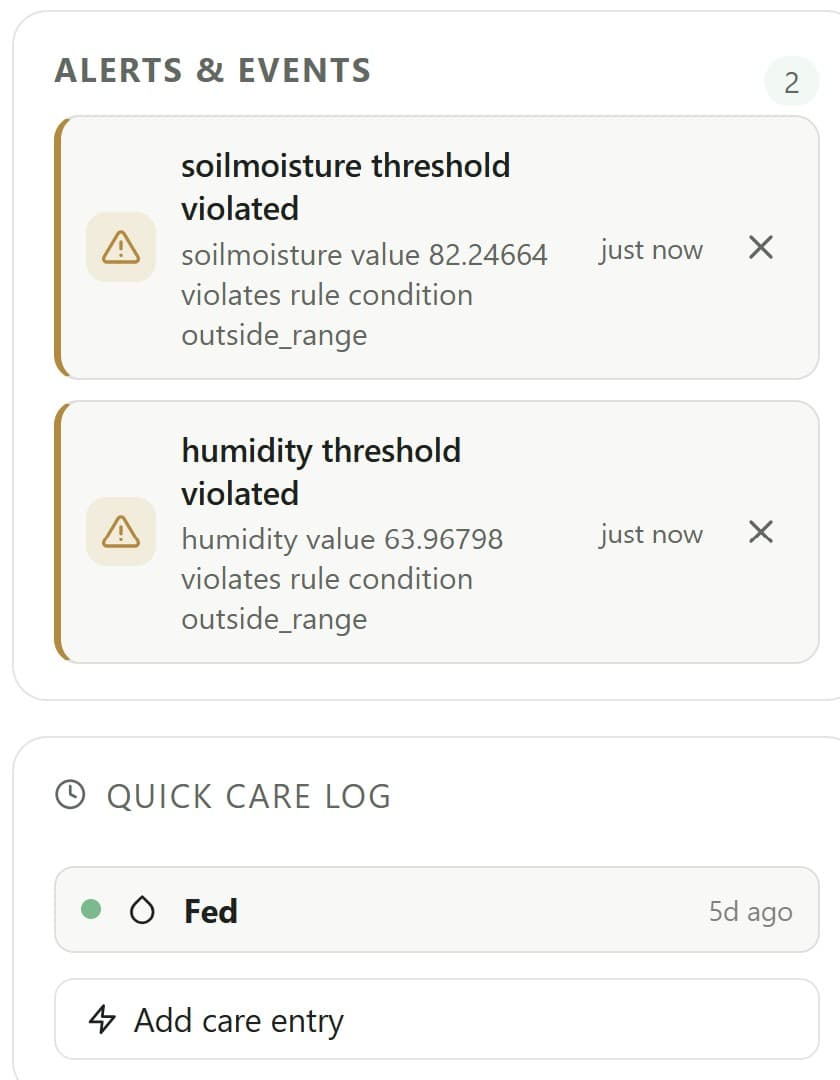

EMAIL ALERTS
Know before it becomes a problem.
Set a temperature and humidity range per device. The moment a reading leaves your configured window, Smart Cloud sends you an email — once per event, no spam.
Also alerts you when a device goes offline for more than 5 minutes. Useful if the power goes out or the gadget loses WiFi. Alerts are included in all plans.
PLANS
Start free. Grow when you need more.
Every Phasmida gadget purchase includes a 12-month Keeper plan — free, no card required. After that, stay free or subscribe.
Create your account. Pair your first gadget. See it live.
Free account. No credit card. Every gadget purchase includes 6 months of Keeper plan so you can experience the full platform before deciding to subscribe.
